Product Line

Fanless Industrial Panel PCs & HMI Touch Computers

Q: Which operating systems do MHY industrial panels support?

Depending on the platform: Windows 10/11 IoT Enterprise or LTSC, Android, Linux and Ubuntu. BIOS settings, watchdog timers, auto-power-on and remote management options are available for unattended machine integration.

Rugged 10.1″–21.5″ touch panels with IP65 fronts, wide-voltage input and Windows, Android, Linux or Ubuntu — built for machines, cabinets, factory floors and vehicle systems, with long lifecycle support for OEM builders.

Request a Quote View Fanless Model Specs

Panel PC Models

Standard Platforms for Machine and Cabinet Integration

Common mechanical families across sizes keep your installation, cabling and OS image consistent across a machine series.

Fanless industrial touch panel PC lineup in multiple screen sizes

IP65 · fanless

Fanless Industrial Panel PC

15″–21.5″ all-flat projected-capacitive panel, Intel Celeron or RK platform, 9–36V DC, rich I/O.

View specifications →

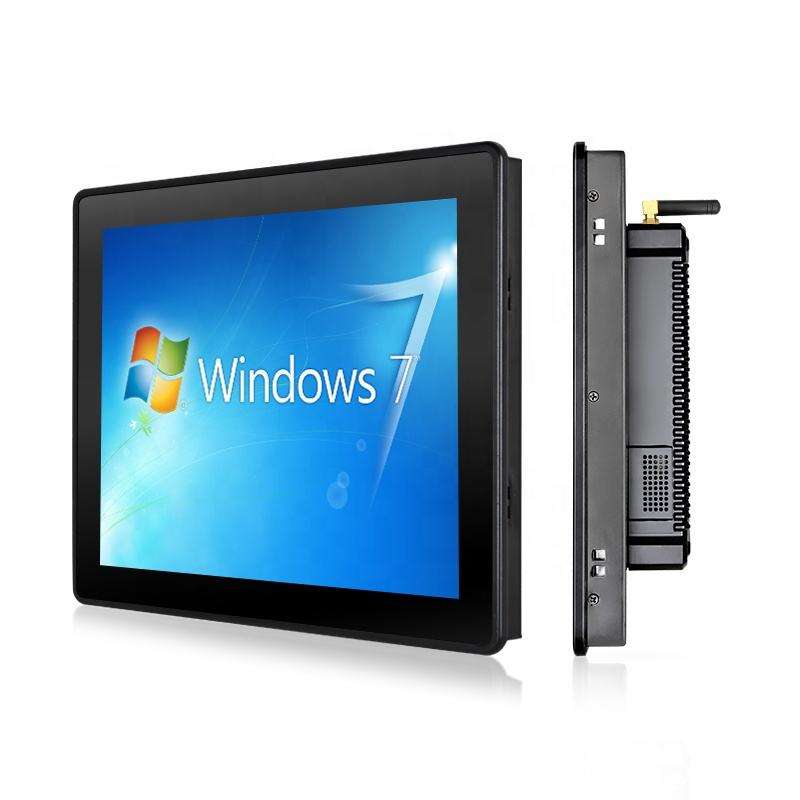

15-inch true-flat industrial HMI touch panel

Compact HMI

10.1″ Compact HMI Panel

Small-format panel for tight machine panels and AGVs, ARM or Intel options, VESA 75 mount.

Request configuration →

Widescreen

21.5″ Widescreen Panel PC

Full-HD wide panel for SCADA, MES terminals and smart-factory dashboards with dual LAN.

Request configuration →

Glove friendly

Resistive-Touch Panel

5-wire resistive touch option for wet, gloved or dirty operator stations in food and heavy industry.

Request configuration →

MHY engineering workstations used for industrial panel PC integration and testing

Open frame

Open-Frame Touch Computer

Bezelless kits designed to integrate into kiosks, control cabinets and custom enclosures.

Request configuration →

MHY OEM ODM process for custom industrial panel PC projects

Fully custom

Custom OEM Panel PC

Custom bezel, I/O map, connectors, OS image and mounting for machine builders.

Start a project →

Why MHY

Industrial-Grade Build, Direct From the Factory

❄️

True Fanless Cooling

Fin-and-chassis thermal design on low-power platforms — no fans to fail, no dust pulled into the enclosure.

💧

IP65 Flat Front

Dust-tight projected-capacitive glass that resists spray-down cleaning in food, pharma and cabinet settings.

🔌

Industrial I/O

Dual LAN, multiple COM/RS-232/485, USB, GPIO, 9–36V DC wide input and watchdog timers as standard options.

♻️

Long Lifecycle Supply

Stable BOM control and OS-image management protect repeat machine orders from unexpected hardware changes.

Capabilities

Engineered for 24/7 Machine Environments

✓ 10.1″–21.5″ projected-capacitive (or 5-wire resistive) multi-touch
✓ Intel Celeron J-series / Core U-series or Rockchip ARM platforms
✓ Windows 10/11 IoT, Android, Linux and Ubuntu support
✓ IP65-rated flat front bezel, aluminum die-cast housing
✓ 9–36V DC wide-voltage input; approximately −20–60 °C operating range
✓ Dual gigabit LAN, RS-232/485, USB, HDMI, GPIO and CAN options
✓ VESA, panel mount and embedded installation; auto power-on and watchdog

See Full Specifications

Industrial touch panel PC deployed on a factory production line

Applications

Where MHY Panel PCs Run

🏭Factory & MES ⚙️Machine Building / OEM 🤖Robotics & AGV 🧪Pharma & Food 🚢Marine & Vehicles 🔋Energy & EV Charging

FAQ

Industrial Panel PC FAQ

What does IP65 front protection mean on an industrial panel PC?

IP65 on the front bezel means the touch surface is dust-tight and protected against low-pressure water jets from any direction, so the panel can be wiped down or splashed in food, pharmaceutical and outdoor-cabinet environments. The rear housing rating is typically lower (IP54/IP4x depending on model and installation); full-enclosure IP ratings can be discussed for custom projects.

Why are industrial panel PCs fanless?

Fanless designs use low-power Intel Celeron/Core or ARM processors cooled through the aluminum chassis and fin stack, eliminating fan failure and dust intake in continuous-operation environments. MHY panels support approximately −20 to 60 degrees Celsius operation depending on the model, plus 9–36V DC input for vehicle and cabinet deployments.

Which operating systems do MHY industrial panels support?

Depending on the hardware platform: Windows 10/11 IoT Enterprise or LTSC, Android, Linux and Ubuntu. Industrial features such as BIOS settings, hardware watchdog timers, auto-power-on after power loss, RTC wake and remote management are available for unattended machine integration.

Can the panel PC be customized for OEM machine builders?

Yes. MHY supports custom bezels and colors, logo marking, BIOS splash screen, I/O port definitions, mounting brackets, connector types and pre-installed OS images. We also manage component lifecycle and change notifications so repeat machine orders remain mechanically and software-consistent over time.

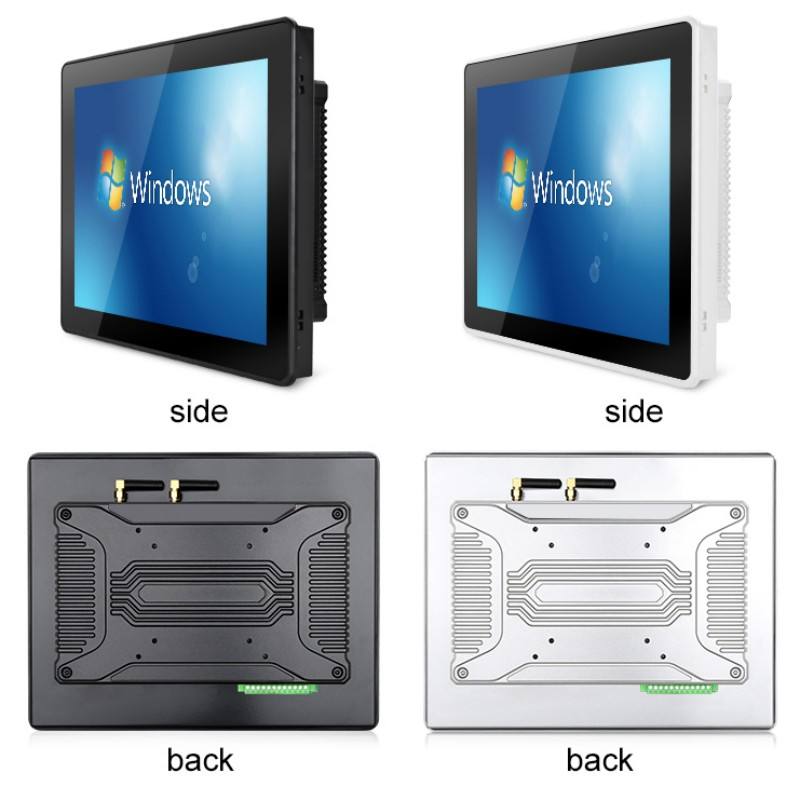

Can projected-capacitive touch be used with gloves?

Standard capacitive touch works with most thin work gloves, but for thick rubber, wet or oily glove use we recommend the 5-wire resistive touch option or a capacitive firmware tuned for glove operation. Tell us your operator conditions and we will recommend the correct touch solution.

Specify the Right Panel for Your Machine

Send screen size, CPU/OS, I/O list and mounting requirements — get a configured quotation within 24 hours.
