MHY floor-standing portrait digital signage totem in 43-65 inch sizes with commercial panel and built-in Android media player

Digital Signage · Floor-Standing

Floor-Standing Digital Signage Display

A slim, self-supporting advertising screen for lobbies, retail floors and transport hubs. Commercial-grade 43″–65″ panels run 16 hours a day, a built-in Android player works with your CMS out of the box, and an optional touch layer turns the same cabinet into a wayfinding or self-service information kiosk.

✓ 43″ / 49″ / 55″ / 65″, Full HD and 4K commercial panels
✓ Built-in Android player; external/OPS Windows option
✓ CMS network scheduling, USB and cloud playlist updates
✓ Optional PCAP touch for interactive information kiosks
✓ OEM frame color, logo, boot video and packaging

Request a Quote Get the Datasheet

Series MHY-DS · samples available · bulk lead time 12–20 days

Highlights

Commercial Screens Built to Run All Day

🕐

Commercial-Grade Panels

Unlike consumer TVs, these panels are specified for long daily run times with stable brightness and thermal design, making them suitable for retail and public-space deployment.

📡

CMS-Ready Out of the Box

The built-in Android player supports network and USB playlist updates and group scheduling; bring your own CMS license or ask MHY for a compatible software recommendation.

👆

Touch Becomes a Kiosk

The same cabinet accepts a projected-capacitive touch layer and integrated mini PC, converting advertising hardware into a wayfinding, check-in or information kiosk without changing the look.

🪶

Slim, Stable, Easy to Place

A tempered-glass front and weighted base deliver a premium appearance with no wall mounting required; rear service access keeps media-player and cable maintenance simple.

Specifications

Technical Specifications

Representative configuration of the MHY-DS floor-standing series; exact panel, brightness and touch options are configured per project.

Screen Sizes	43, 49, 55 and 65 inch diagonal
Resolution	1920×1080 Full HD standard; 3840×2160 4K UHD on selected sizes
Panel Type	Commercial-grade TFT, wide viewing angle, specified for extended daily operation
Brightness	350–500 cd/m² indoor standard; higher-brightness option for window-facing environments
Orientation	Portrait floor-standing standard; landscape configuration and rotatable mounts on request
Media Player	Built-in Android player (Wi-Fi/Ethernet); external Windows/OPS player and HDMI pass-through optional
Content Management	CMS-compatible network scheduling, USB update and cloud playlist; multi-screen group control
Touch (optional)	Projected-capacitive multi-touch overlay with integrated host for interactive kiosk mode
Housing	Slim metal cabinet, tempered-glass front, weighted stable base, rear service door; custom RAL color and logo
Interfaces	HDMI, USB, RJ45 LAN, Wi-Fi, audio; additional I/O on external-player models
Power	AC 100–240 V internal power supply with concealed cable routing
Certification	CE, FCC, RoHS compliant; ISO 9001 certified factory
Warranty	1 year standard, extendable to 3 years; lifetime technical support
MOQ & Lead Time	Sample MOQ 1 unit (3–7 days); bulk 12–20 days; OEM frame color, logo, boot video and packaging from agreed MOQ

Applications

Where Floor-Standing Signage Works

🛍️

Retail & Malls

Promotions, product launches and wayfinding at entrances, aisles and pop-up zones.

🏨

Hotels & Lobbies

Welcome messaging, event boards and wayfinding that complement self check-in kiosks.

🍽️

Restaurants & QSR

Digital menu boards and queue promotion; add touch to turn it into an ordering kiosk.

✈️

Airports & Stations

Flight/train information, advertising and passenger guidance in concourses and waiting areas.

🏢

Corporate & Government

Reception directories, announcements and interactive building wayfinding in lobbies.

🏥

Healthcare

Queue calling, health education and department navigation in hospital entrances and halls.

Pairs Well With

Self-service

Self-Service Kiosks

When visitors need to do more than watch — order, check in or pay.

View range →

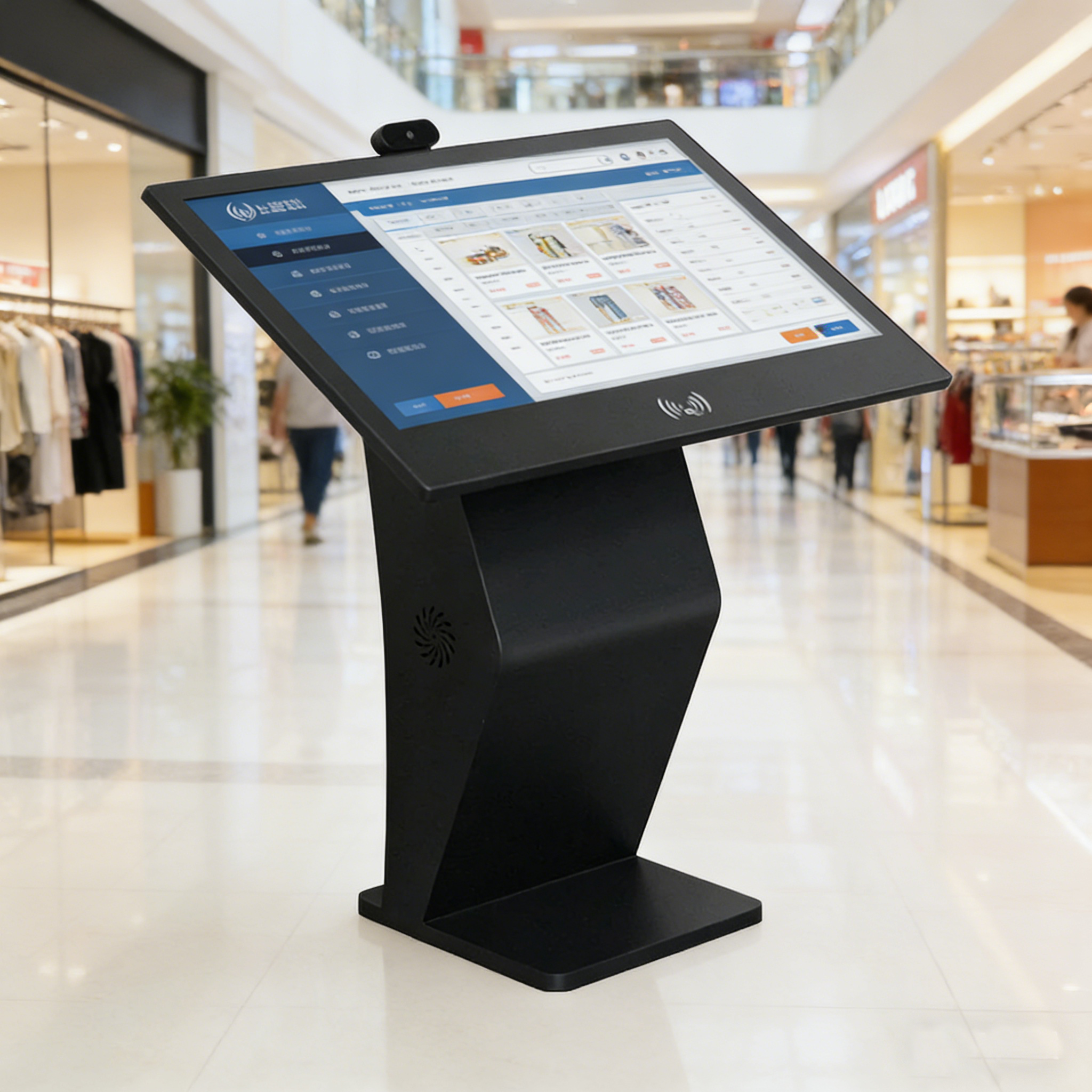

Slim K-style floor-standing slanted touch kiosk for interactive information and wayfinding

Embedded

Industrial Panel PCs

Embedded host compute for custom interactive display and kiosk cabinets.

View range →

Wall-mounted commercial digital signage display completing the in-store screen range

Payment

Payment & POS Terminals

Close the loop from on-screen promotion to in-store purchase.

View range →

FAQ

Digital Signage FAQ

Do I need to buy separate CMS software?

The display ships with a built-in Android media player that supports USB and basic network playlist updates. For multi-screen scheduling, remote monitoring and proof-of-play reporting you can connect your existing CMS license; MHY can also recommend compatible signage software and verify it on the hardware before shipment.

Can the same screen be supplied as a touch kiosk?

Yes. The floor-standing cabinet is designed to accept a projected-capacitive touch overlay and an integrated host computer, so an advertising screen can be ordered as a wayfinding, check-in or information kiosk with the same exterior styling.

What brightness do I need for a shop window facing sunlight?

Standard 350–500 nits suits indoor, away-from-window placements. For storefront and atrium locations exposed to direct or strong ambient light, specify the high-brightness panel option; MHY will recommend a size and brightness based on photos of the installation site.

Can screens be branded for our hotel or retail chain?

Yes — frame color, silk-screen or etched logo, boot video, default launcher and outer packaging can be customized from agreed MOQ, and mixed-size orders can share one visual identity across a property or store network.

Size Up Your Signage Project

Share your screen size, quantity and whether touch is needed — get a factory quote within 24 hours.
